BlueScope

EYEPIECE(S)
Wide field WF 10x/20 mm secured eyepieces.
The eyepiece of monocular models is supplied with pointer

HEAD

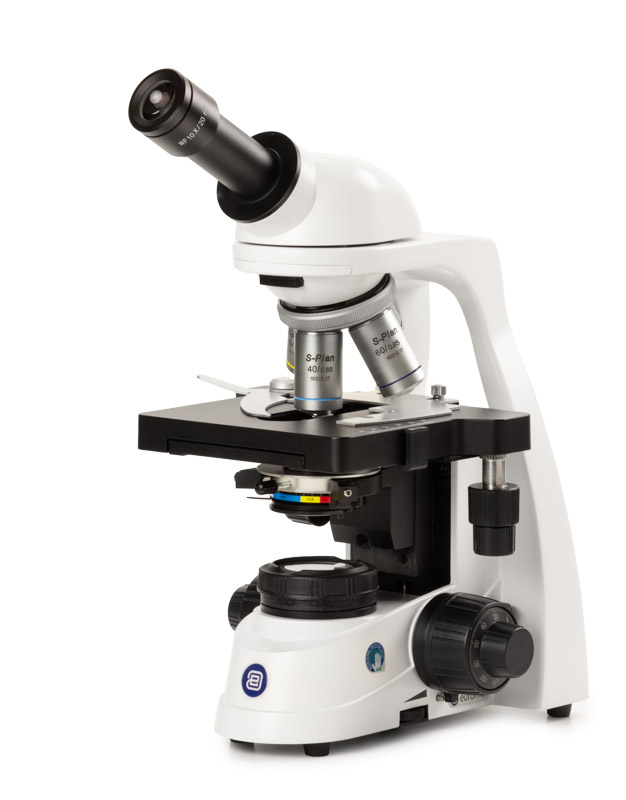

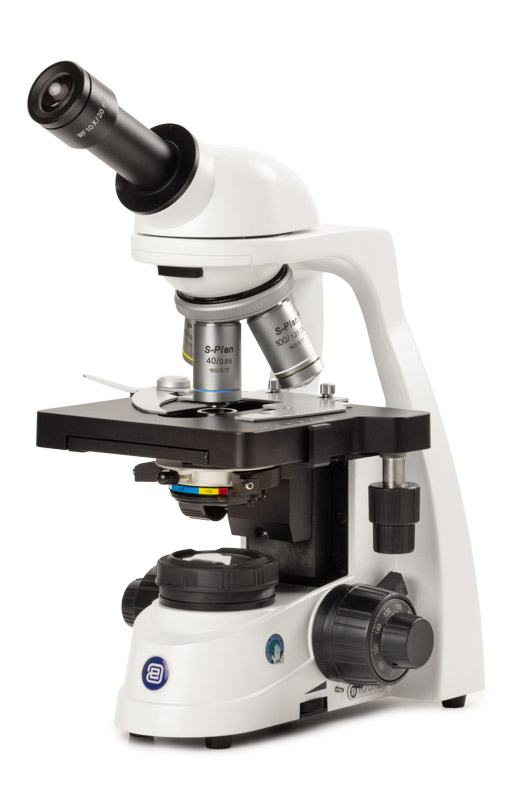

• Monocular models with 45° inclined tubes
• Binocular and trinocular models have 30° inclined tubes, interpupillary distance is adjustable between 48 and 75 mm and equipped with diopter adjustments ± 5 on both eyepieces

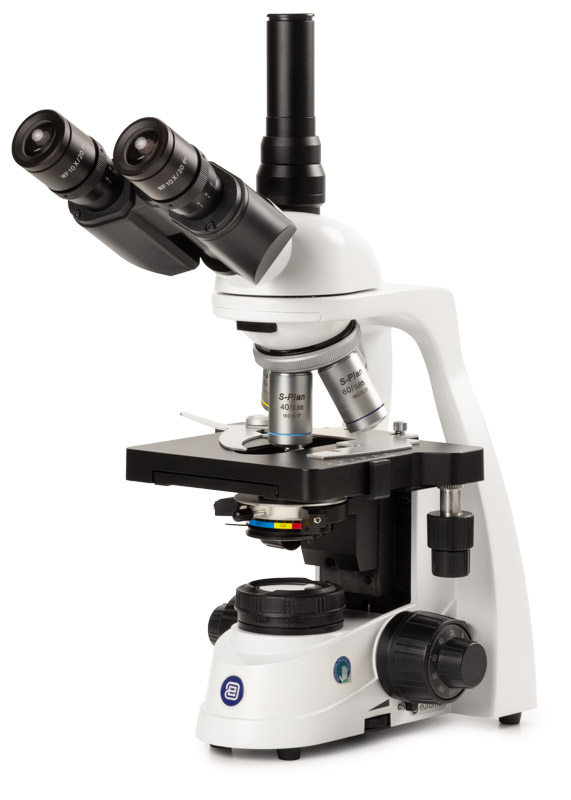

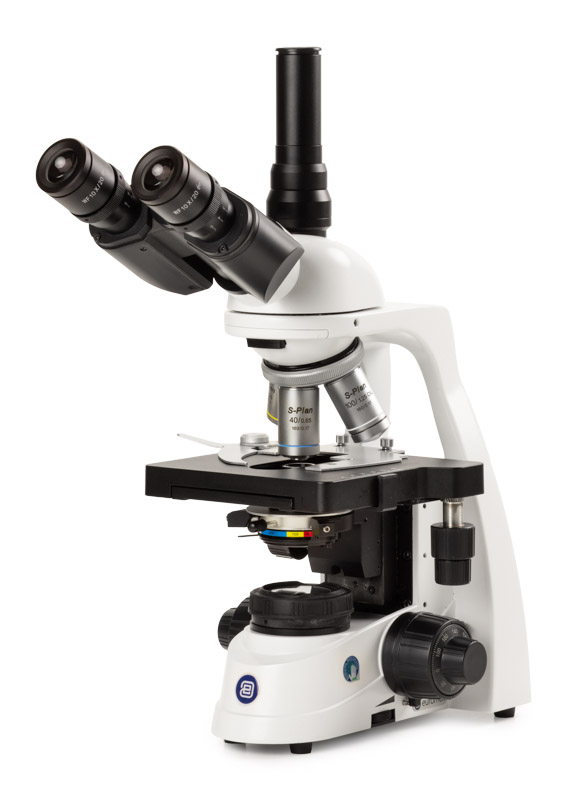

• All heads are 360° rotatable. The trinocular head has a fixed light path beam splitter (50:50) and generates an erect image
• The BlueScope can also be supplied with a discussion head
• Models with an integrated 5.0 MP CMOS camera, with a 7” LCD screen or tablet available

NOSEPIECE
Reversed quadruple nosepiece on ball bearings

OBJECTIVES - 45 MM PARFOCAL

• All models are supplied with Semi Plan 4x/0.10, 10x/0.25 and S40x/0.65 objectives
• The S40x, S60x (optional) and S100x (optional) objectives are spring loaded

All optics are anti-fungus treated and anti-reflection coated for maximum light throughput

FOCUSING

• Coaxial coarse and fine adjustments with 100 graduations
• Precision 2 μm per graduation, 0.2 mm per rotation
• Total travel range is approximately 10 mm
• Supplied with an adjustable rack stop to prevent damage to sample and objectives
• Improved coarse & fine adjustment, which is equipped with tension control
• With quick focusing aid for finding the slides focusing region with ease

STAGE
Rackless 140 x 135 mm stage with mechanical 70 x 50 mm X-Y translation stage

CONDENSER
Color coded, height adjustable Abbe condenser N.A. 1.25 with iris diaphragm and filter holder

KÖHLER ILLUMINATION
Köhler illumination ensures the highest possible contrast and the maximum achievable resolving power. It generates a uniform illumination of the sample and eliminates all interference from dust on lenses and side glare of the light source

DUAL ILLUMINATION SYSTEM

• White LED: 6000 – 6500 K white 3 W LED™.Ideal for standard observations with crisp, cool lighting
• Halogen colored LED: 3000 – 3200 K 3 W NeoLED™. Enhances contrast for specific applications such as transparent objects

QUICK FOCUS AID
The BlueScope is equipped with a quick focus aid

ANTI-THEFT SLOT
At the back of the microscope a Kensington Security Slot is placed, which can be used to secure the instrument from theft

PACKAGE CONTENT
Supplied with blue filter, Allen key, 5 ml immersion oil, 100-240 Vac / 5 Vdc USB multi-plug power adapter, 3 rechargeable type AA batteries, manual and dust cover
