bScope large samples (metallurgisch)

EYEPIECES
Wide field WF 10x/22 mm eyepieces with 22 mm field of view (Ø 30 mm tube)

HEAD
The bScope is equipped with:

• A Siedentopf trinocular type head, 30° inclined tubes
• A ± 5 diopter adjustment on left eyepiece
• The interpupillary distance is adjustable between 48 to 76 mm

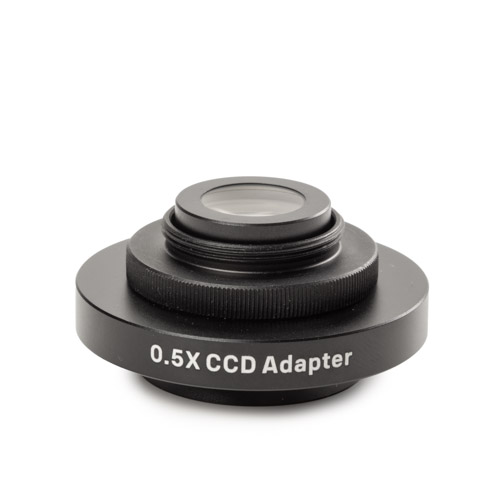

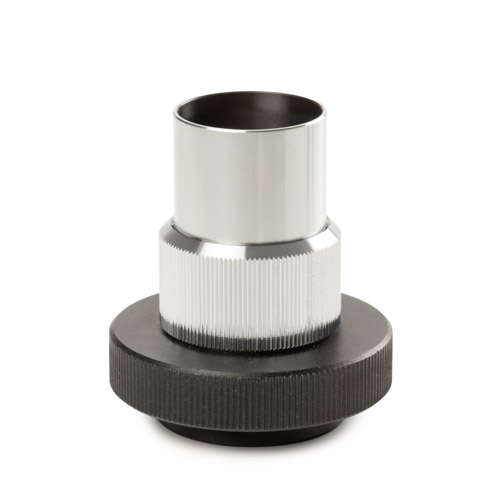

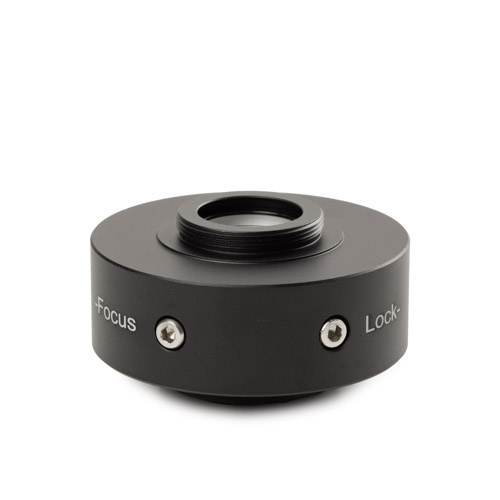

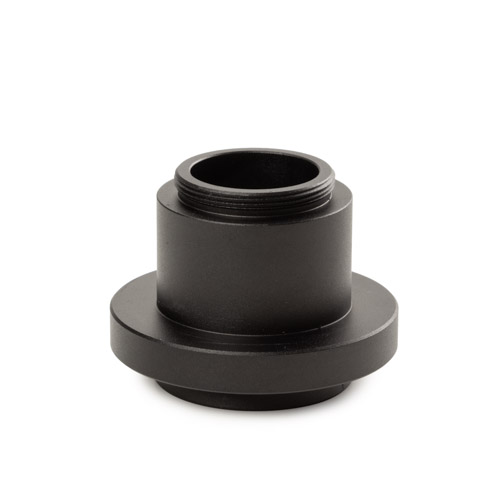

• A Ø 23.2 mm camera tube
• The prisms inside the head are designed to minimize the light absorption for perfect digital imaging
• Light path selector (100:0 / 0:100). Generates an erect image

NOSEPIECE
Revolving and reversed ball-bearing quadruple nosepiece

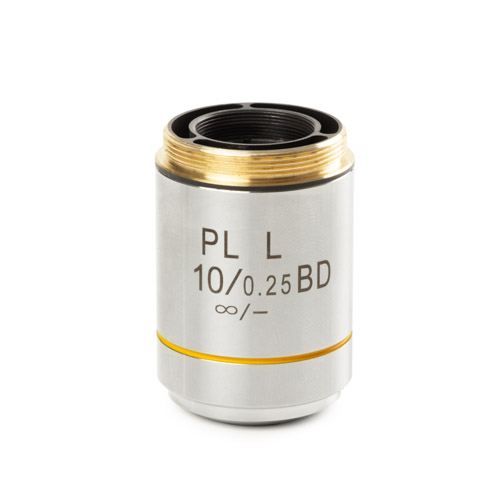

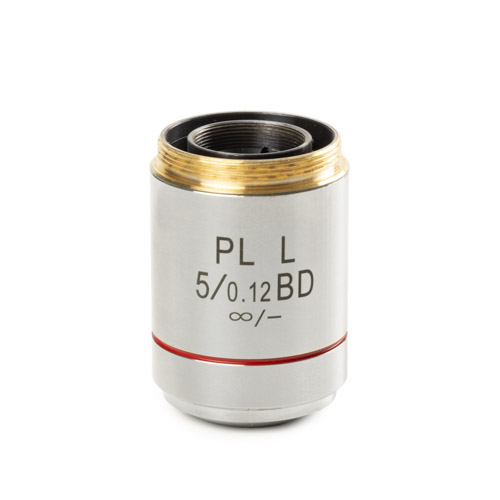

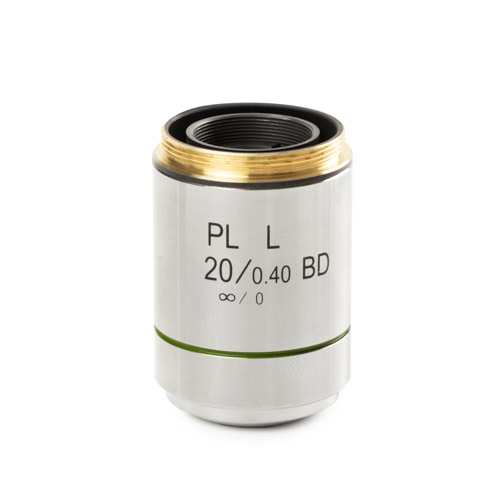

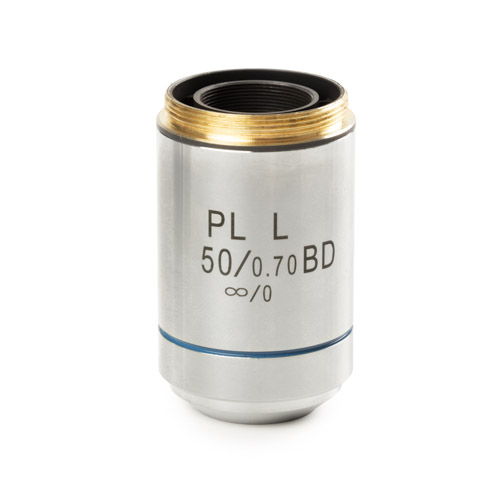

OBJECTIVES
The state-of-the-art production techniques and multi layer coatings used for the manufacturing of the bScope objectives enables the bScope to be used for the most demanding applications. World class spherical aberration correction together with modern CNC and assembly technology ensure perfect centering of the objectives

This line of metallurgcial microscope comes in two versions:

• The brightfield model that suits most materials science applications
• The model with brightfield and darkfield illumination for the most advanced analysis

* Optional
All optics are anti-fungus treated and anti-reflection coated for maximum light throughput
WD = working distance

FOCUSING

• Double coaxial, low-positioned coarse and fine adjustments with 180 graduations
• Precision 1.3 µm, 130 µm per rotation, total travel range is approximately 20 mm
• Supplied with an adjustable rack stop to prevent damage to sample and objectives
• Improved coarse & fine adjustment, which is equipped with tension control

STAGE
The bScope is equipped with a scratch resistant 30 x 25 cm flat base and comes with a 185x140 mm mounted X-Y mechanical stage, with 35 x 30 mm travel

REFLECTED LED ILLUMINATION
Reflected intensity adjustable 5 W LED Köhler illumination with

• External power supply
• Push-pull type rotatable polarizer
• Push-pull analyzer
• Built-in condenser with iris diaphragm and field iris diaphragm
• Integrated rotating filter disc with green, blue, yellow and white filters

POLARIZATION
The bScope has an integrated slot above the nosepiece for an optional polarization filter for transmitted illumination

PACKAGE CONTENT

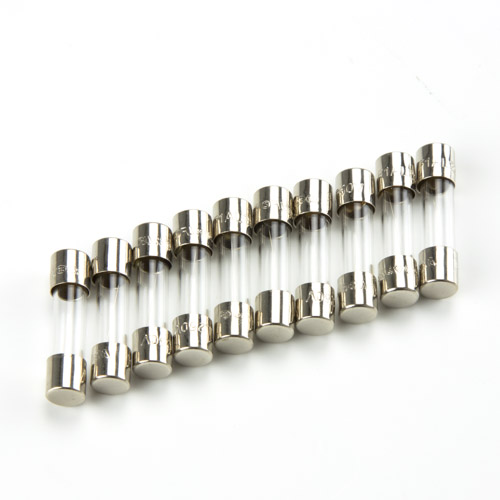

Polystyrene packaging ensures a low environmental footprint while maintaining maximum safety during transport. Supplied with power cord, dust cover, tools, a spare fuse and user manual
