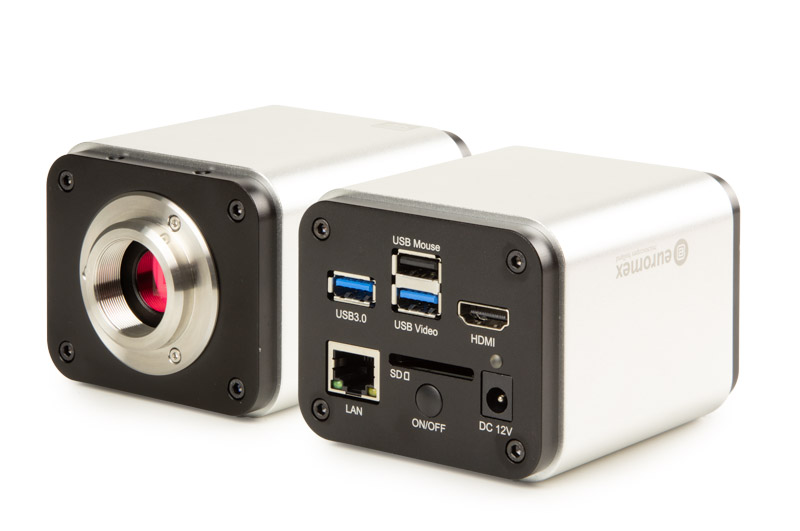

Highlights

  • Ultra HD 2160p, 8.3 MP, 1/8 inch color 4K Sony sensor

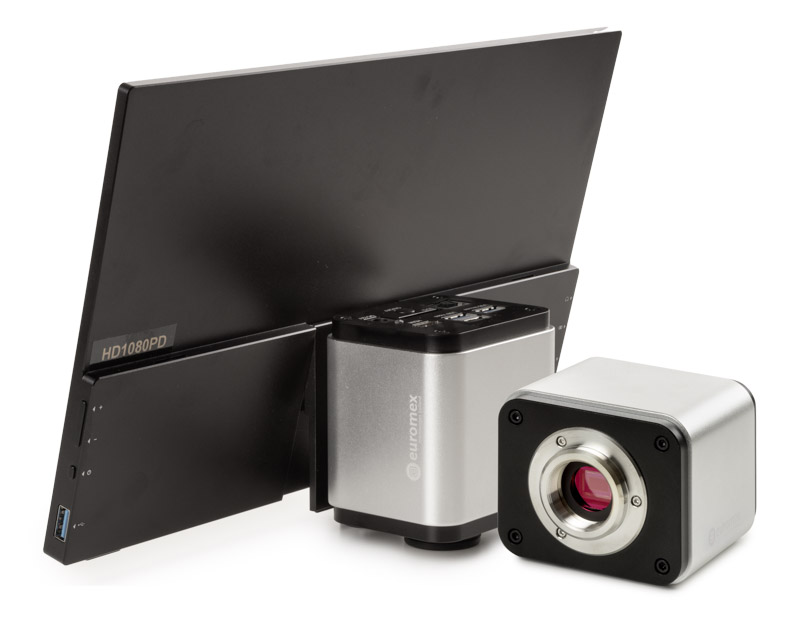

  • Available with 13” HD screen (VC.3042-HDS)
  • 3840 x 2160 pixels, 30 fps, H264 codec
  • ADC 16 bits, color depth 36 bits
  • Real time images directly on TV, monitor or beamer
  • Stand alone or used via PC
  • Built-in mouse-driven software
  • C-mount interface
  • 4K HDMI 2.0 standard
  • 2061p/1080p automatic switching
  • Interface: HDMI, USB-2, Ethernet, WiFi
  • SD memory card
  • Works with ImageFocus Alpha software
Models
Specifications
Accessories
Downloads

Models

Product number Models Sensor Pixel size Pixels HD screen Color rendering (bits) Signal/Noise (db) Sensitivity Lux/sec
VC.3042 UHD-4K 1/1.8” Sony CMOS 2.0 x 2.0 μm 3840 x 2160 - 36 40.5 505 mV
VC.3042‑HDS UHD-4K 1/1.8” Sony CMOS 2.0 x 2.0 μm 3840 x 2160 13” 36 40.5 505 mV

TECHNICAL SPECIFICATIONS

Sensor
4K Sony

Format
1/1.8”, HDTV 2160p

Pixels
3840 x 2160 (capture mode)
HDMI 30 fps, USB 30 fps

Pixel size
2.0 x 2.0 μm

Video
2160 pixels video recording mode

HD screen (VC.3042-HDS)
13”

Scan mode
Progressive scan, rolling shutter

Noise
Standard noise reduction

Senitivity
505 mV

Exposure
Automatic/ manual

White balance
Automatic/ manual/ ROI

S/N Max
40.5

Interfaces
HDMI, USB-2.0, Ethernet, WiFi

Storage
High speed 32 GB SD Memory card (larger capacity SD cards are optional, max 128 GB)

Camera buttons
On/ Off

Mounting
C-mount interface

Power supply
100-240 Vac to 12Vdc/1A

Humidity
30~80 %

Operation temperature
-10~ 50 ° Celsius

Storage temperature
-20~ 60° Celsius

Measurement
Supported

Supplied with
0.5x objective with C-mount, 30 mm and 30.5 mm adapters for stereo microscopes, 12 V/1 A power adapter, 32 GB SD card, Micro USB Synchronous cable 1.5 M, HDMI cable, USB mouse, WiFi dongle, 76 x 24 mm calibration slide (1mm/100), carton box

PC software
Works with ImageFocus Alpha imaging and measuring software for Windows 10 and higher (32 and 64 bit configurations) and Linux. A Mac OS version is also available (with a few differences in features)

PC requirements
Compatible with Intel Core 2, 2.8 GHZ or higher, 2 GB, USB-2

Product number
VC.3042 / VC.3042-HDS

OX.9850 OX.9850
Photo port adapter with 0.5x lens for Oxion (revision 2) and Oxion Inverso microscopes and 1/2 inch camera with C-mount
SB.9850 SB.9850
C-mount adapter with 0.50x lens for 1/2 inch cameras
NZ.9850 NZ.9850
C-mount adapter with 0,5x lens for 1/2 inch cameras
AE.1110 AE.1110
Stage 76 x 26 mm micrometer slide, 1 mm divided in 100 parts, 10 µm per division
AE.1111 AE.1111
Stage micrometer 2 mm divided in 200 parts, 10 µm per division
AE.1112 AE.1112
Stage 76 x 26 mm micrometer slide, 50 mm divided in 500 parts, 100 µm per division
AE.9855-L AE.9855-L
0.55x C-mount adapter for Leica DM microscope with 35 mm photo port and 1/2 inch C-mount cameras
AE.9850-O AE.9850-O
0.50x C-mount adapter for Olympus microscope with 35 mm photo port and 1/2 inch C-mount cameras
AE.9855-N AE.9855-N
0.55x C-mount adapter for Nikon microscope with 38 mm photo port and 1/2 inch C-mount cameras
AE.9850-Z AE.9850-Z
0.50x C-mount adapter for Zeiss PrimoStar microscope with 30 mm photo port and 1/2 inch C-mount cameras
DX.9850 DX.9850
C-mount with high resolution relay 0.50x objective for 1/2 inch C-mount camera
No image DI.9850
C-mount with high resolution 0.50x objective for 1/2 inch C-mount camera
