Highlights

  • Monocular, binocular and trinocular models with WF10x/18 mm eyepiece(s)
  • Models with integrated 5.0 MP CMOS camera
  • Models for polarization applications
  • Provided with APL (Antimicrobial Protection Layer)
  • Revolving nosepiece with four achromatic objectives
  • Models with integrated mechanical stage available
  • Coaxial coarse and fine adjustments with rack stop
  • Height adjustable Abbe condenser with iris diaphragm and filter holder
  • 1 W LED or NeoLED™ illumination
  • Models without X-Y stage have internal power supply. No batteries
  • Models with X-Y stage have rechargeable batteries and external charger/adapter
  • Ergonomic stand
Models
Specifications
Accessories
Downloads

EcoBlue standard

MODELS Monocular Binocular Trinocular 4/10/40x objectives S60x objective S100x objective Mechanical X-Y Stage (1) LED NeoLED Batteries (2) Polarization (3)
EEC‑1001 • • •
EEC‑1101 • • • •
EEC‑1601 • • • •
EEC‑1051 • • • • •
EEC‑1151 • • • • • •
EEC‑1651 • • • • • •
EEC‑1152 • • • • • •
EEC‑1652 • • • • • •
EEC‑1053 • • • • •
EEC‑1153 • • • • • •
EEC‑1001‑P‑HLED‑S • • • •*
EEC‑1601‑P‑HLED‑S • • • • •*
EEC‑1101‑P‑HLED‑S • • • • •*
EEC‑1002‑P‑HLED‑S • • • •*
EEC‑1602‑P‑HLED‑S • • • • •*
EEC‑1102‑P‑HLED‑S • • • • •*
EEC‑1003‑P‑HLED‑S • • • •*
EEC‑1603‑P‑HLED‑S • • • • •*
EEC‑1103‑P‑HLED‑S • • • • •*

(1) Models with integrated mechanical stage with 70 x 27 mm X-Y travel range are supplied with internal rechargeable batteries and an external 100-240 Vac power supply adapter
(2) With an external 100-240 V battery charger/mains adapter

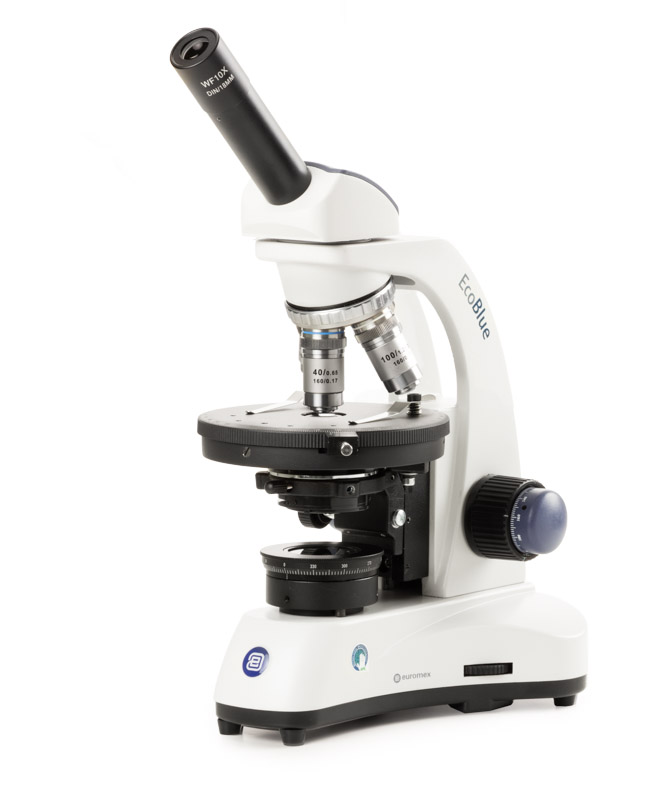

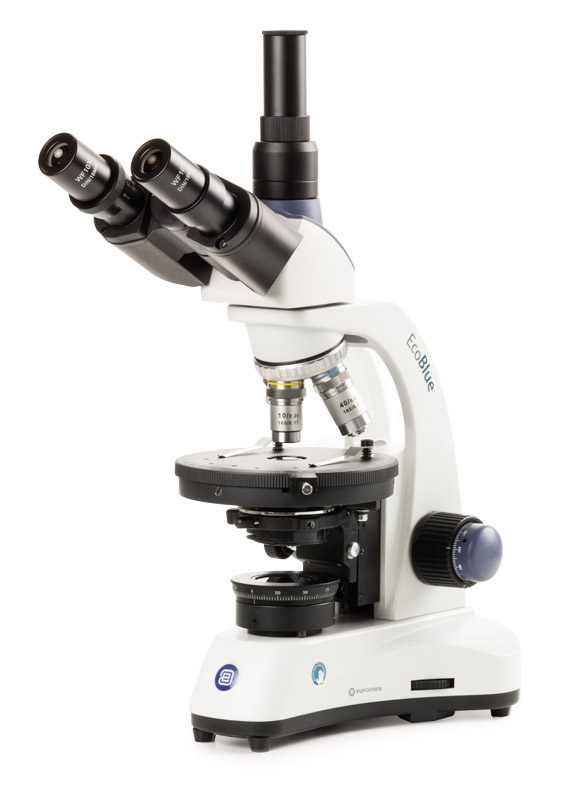

(3) Polarization models are supplied with a 129 mm round stage and semi-plan objectives and H-LED illumination (similar light spectrum as halogen)


* Model with semi-plan objectives

EcoBlue Digital

MODELS Monocular Binocular 4x/10x/S40x objective S60x objective S100x objective Mechanical X-Y stage (1) LED NeoLED Batteries (2)
EEC‑1005 • • •
EEC‑1105 • • • •
EEC‑1605 • • • •
EEC‑1007 • • •
EEC‑1107 • • • •
EEC‑1607 • • • •
EEC‑1055 • • • • •
EEC‑1155 • • • • • •
EEC‑1655 • • • • • •
EEC‑1057 • • • • •
EEC‑1157 • • • • • •
EEC‑1657 • • • • • •

(1) Models with integrated mechanical stage with 70 x 27 mm X-Y travel range are supplied with internal rechargeable batteries and an external 100-240 Vac power supply adapter
(2) With external 100-240 V battery charger/mains adapter

EYEPIECE(S)
Wide field WF 10x/18 mm eyepiece with pointer. The eyepieces of the binocular and trinocular models are supplied without pointer

HEAD
• Monocular models with 45° inclined tubes
• Binocular and trinocular models have 30° inclined tubes
• The interpupillary distance is adjustable between 48 and 75 mm
• All binocular and trinocular models have a diopter ± 5 diopter adjustment on left tube
• All heads are 360° rotatable
• Models with an integrated USB-2 camera are supplied with a 5.0 MP 1/2” CMOS sensor with 2560 x 1920 pixels resolution
• The EcoBlue can also be supplied with a discussion head

NOSEPIECE
• Revolving nosepiece for four objectives on ball bearings
• Models for polarization are supplied with swing-out analyzer

OBJECTIVES - 45 MM PARFOCAL
• Achromatic 4x/0.10, 10x/0.25, S40x/0.65 and S100x/1.25 objectives
• The S40x, S60x and S100x oil immersion objectives are spring loaded
• The HLED-S models for polarization are equipped with semi-plan objectives

All optics are anti-fungus treated and anti-reflection coated for maximum light throughput

(Photo: EEC-7004, EEC-7010, EEC-7020, EEC-7040, EEC-7060, EEC-7000)

EC.7004_7010_7020_7040_7060_7000

FOCUSING
• Coaxial coarse and fine adjustments, 200 graduations, 12.5 µm per graduation, 2.5 mm per rotation, total travel approximately 15 mm
• Supplied with an adjustable rack stop to prevent damage to sample and objective

STAGES
• Plain 123 x 119 mm stage with two non-removable object clamps (optional EEC-9500 attachable 51 x 26 mm X-Y mechanical stage available)
• Plain 123 x 128 mm stage with integrated 70 x 27 mm X-Y mechanical stage
• The models for polarization are supplied with 129 mm circular stage, 360° rotatable and 2 object clamps

CONDENSER
• Height adjustable Abbe condenser N.A. 1.25 with iris diaphragm and filter holder
• The models for polarization have a rack & pinion adjustment, all other models carry a helicoidal adjustment

ILLUMINATION

NeoLED-combined

• Monocular models are supplied with an adjustable 1 W NeoLED™ illumination system
• Binocular and trinocular models are supplied with an adjustable 1 W NeoLED™ illumination system for increased light output
• Models with plain stage without X-Y mechanical stage are supplied with integrated power supply, no recheargable batteries
• Models with an integrated XY mechanical stage are supplied with rechargeable batteries and an external 100-240 V battery charger/mains adapter
• The models for polarization are supplied with H-LED illumination for correct color rendering (very similar to the halogen light spectrum). With an integrated 100-240 V power supply, no  recheargable batteries

ANTI-THEFT SLOT
At the back of the microscope a Kensington Security Slot is placed, which can be used to secure the instrument from theft

STORAGE AND TRANSPORTATION

AE.9918_ECAE.9912

from left to right: EAE-9918 - EAE-9912

PACKAGING
• Supplied with power cord or mains adapter-charger, dust cover, spare fuse, user manual and 5 ml immersion oil for models with an S100x objective
• The EcoBlue models with external mains adapter and X-Y stage (EEC-1x5x) are supplied with three rechargeable AA batteries
• All packed in a polystyrene box

DIGITAL MODELS

CAMERA
• All the EcoBlue digital microscopes are equipped with a 5.0 MP CMOS USB-2 camera
• Maximum resolution 2560 x 1920, 24 bits color depth, up to 30 frames per second
• Delivered with the ImageFocus Plus software, USB-2 cable and a micrometer 1mm/100 slide
• Warranty for the camera is 2 years

SOFTWARE
• Delivered with ImageFocus Plus for capturing of images and videos
• The capture and analysis ImageFocus Plus software allows to save images in .jpg, .tif, .bmp or .dicom formats and videos in .avi format
• Images can be annotated and measurements can be performed on live or captured images
• Compatible with Windows 7, 8 and 10, both 32 and 64 bits configurations
• A Mac OS version is also available
• Free updates can be downloaded from our website

PB.5276 EPB-5276
Microscope maintenance and servicing kit, 16pcs: cleaning brush, 6 pcs screwdriver set, air blower, 3 pcs Allen key, 1.5, 2, 2.5 mm, lens cleaning fluid 20 ml, cleaning cloth 140 x 140 mm, 100 pcs Lens tissue sheets, tube of maintenance grease, 10 ml bottle of oil, packed in a nice toolbox
 AE.5571 EAE-5571
Wide field eyepiece WF 5x/18 mm
 EC.6010 EEC-6010
Wide field WF 10x/18 mm eyepiece
 EC.6010-M EEC-6010-M
Wide field WF 10x/18 mm eyepiece with micrometer scale
 EC.6010-P EEC-6010-P
Wide field WF 10x/18 mm eyepiece with pointer
 EC.6015 EEC-6015
Wide field WF 15x/12 mm eyepiece for EcoBlue
 EC.6110 EEC-6110
Wide field WF 10x/18 mm eyepiece with micrometer scale
 EC.6099 EEC-6099
Pair of eyecups for EcoBlue
 EC.7004 EEC-7004
Achromatic 4x/0.10 objective. Parafocal 45 mm
 EC.7010 EEC-7010
Achromatic 10x/0.25 objective. Parafocal 45 mm
 EC.7020 EEC-7020
Achromatic 20x/0.40 objective. Parafocal 45 mm
 EC.7040 EEC-7040
Achromatic S40x/0.65 objective. Parafocal 45 mm
 EC.7060 EEC-7060
Achromatic S60x/0.85 objective. Parafocal 45 mm
 EC.7000 EEC-7000
Achromatic S100x/1.25 oil immersion objective. Parafocal 45 mm
 AE.5511 EAE-5511
Discussion head without eyepieces. Delivered with two eyepieces when the head is ordered mounted on microscope
 EC.9500 EEC-9500
Attachable mechanical 51 x 26 mm X-Y stage with double Vernier and separate horizontal adjustments knobs for EcoBlue series
 AE.5150 EAE-5150
Simple polarization attachment. Analyzer Ø 18 mm to be mounted in eyepiece, polarizer Ø 32 mm placed in filter holder
 AE.5152 EAE-5152
Polarization attachment. Analyzer mounted over eyepiece and small (75 x 50 mm) 360° rotatable stage with built-in polarizer to be mounted on X-Y stage
 AE.5153 EAE-5153
polarization attachment for models without X-Y stage. Analyzer mounted over eyepiece and small 360° rotatable stage with built-in polarizer to place on 90 x 65 mm plain stage
 AE.5154 EAE-5154
Polarizer in mount, to place over eyepiece
 EC.9710 EEC-9710
Frosted white filter
 EC.9981 EEC-9981
1 W LED replacement unit
 EC.9991 EEC-9991
1 W NeoLED™replacement unit
 SL.1379 ESL-1379
Spare halogen 20W 12V bulb for polarization models
No image ESL-5502
1 W LED replacement unit
 EC.9975 EEC-9975
External mains/charger adapter 100-240 Vac/5Vdc (50/60Hz)
 AE.5130 EAE-5130
Universal SLR-adapter with built-in 2x lens for standard 23.2 mm tube. Needs T2 adapter
 AE.5025 EAE-5025
T2 ring for Nikon D SLR-digital camera
 AE.5040 EAE-5040
T2 ring for Canon EOS SLR-digital camera
 PB.5155 EPB-5155
Microscope slides 76 x 26 mm, ground edges, 50 pieces per pack
 PB.5165 EPB-5165
Cover glasses 18 x 18 mm, 0.13-0.17 mm, 100 pieces
 PB.5168 EPB-5168
Cover glasses 22 x 22 mm, 0.13-0.17 mm. 100 pieces
 PB.5245 EPB-5245
Lens cleaning paper, 100 sheets per pack
 PB.5255 EPB-5255
Immersion oil, 25 ml. Refraction index n = 1.515
 PB.5274 EPB-5274
Iso propyl alcohol 99%, 200 ml
PB.5275 EPB-5275
Cleaning kit: lens fluid, lint free lens tissue paper, brush, air blower, cotton swabs
 AE.9918 EAE-9918
Nylon microscope bag (25 x 39 x 19 cm)
 AE.5227 EAE-5227
Glass fuses 1A 250V, 10 pieces
 PB.5157-B EPB-5157-B
Microscope slides 76 x 26 mm, ground edges. Blue frosted side, 50 pieces per pack
 PB.5157-W EPB-5157-W
Microscope slides 76 x 26 mm, ground edges. White frosted side, 50 pieces per pack
 AE.9912 EAE-9912
Euromex dust cover medium (40 x 46 cm). For MicroBlue, EcoBlue, BioBlue bino, EduBlue, X-serie
 AE.1370 EAE-1370
Set of 3 rechargeable AA batteries
