Achios-X Inverso metallurgical

EYEPIECES
SWF 10x/22 mm widefield eyepieces with adjustable diopter, ø 30 mm tubes  and -5/+5 diopter

HEAD

• Binocular ergo head with 5-35° tilting tubes
• Interpupillary distance of 48 to 75 mm
• Side photo port with 80:20  beamsplitter, c-mount lenses optional

NOSEPIECE
Revolving quintuple nosepiece on ball-bearings, coded

BRIGHTFIELD/DARKFIELD OBJECTIVES
Plan infinity corrected PLi, IOS 45 mm parfocal, high numerical, long working distance, no cover glass correction, M26 mount

• 5x/0.12 WD 20 mm BD
• 10x/0.30 WD 11 mm BD
• 20x/0.45 WD 3.1 mm BD

Plan Apochromatic infinity corrected PL-AMi, IOS 45 mm parfocal, high numerical, long working distance, no cover glass correction, M26 mount

• 50x/0.80 WD 1 mm BD
• 100x/0.90 WD 1 mm BD (optional)

BD = Brightfield/Darkfield
WD = working distance
All optics are anti-fungus treated and anti-reflection coated for maximum light throughput

STAGE

• Stage 226 x 178 mm with Vernier scale
• Equipped with a coaxial mechanical 50 x 50 mm X-Y stage
• Maximum weight for sample: 5 kg

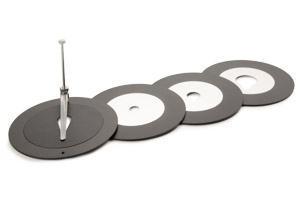

Supplied with:

• Metal insert with hole ø 10 mm
• Metal insert with hole ø 15 mm
• Metal insert with hole ø 25 mm
• Metal insert that can hold an object clamp

FOCUS ADJUSTMENT

• Low positioned for more comfort
• Coaxial 37.5 mm coarse and fine adjustments with 200 graduations
• Precision 1 μm, 0.2 mm per rotation
• Fine focus knobs are left/right interchangeable

ILLUMINATION AND FILTERS

• Transmitted 3W NeoLED™ illumination with adjustable intensity
• Internal power supply 100-240 V (CE). Fuse 500 mA 250 Vac
• Adjustable field diaphragm and condenser aperture (both motorized)
• Adjustable color temperature
• Slot for filter. Blue, green, yellow, frosted white filters included

POLARIZATION

• Slot with 360° rotatable polarizer
• Analyzer built in the illumination turret

SMART LIGHT CONTROL
This intelligent function:

• memorizes the light intensity level for each objective
• memorizes field and aperture diaphragm position
• memorizes color temperature
• increases comfort
• saves valuable time during routine magnification shifts
• includes a sleep function

NEOLED

The innovative NeoLED™ design is a combination of a custom LED and a specially designed thin lens with a short focal length
Four main benefits:

• More oblique light from the NeoLED™ light source, which increases the light output significantly
• Less energy is required to achieve this level of light intensity
• The larger aperture of NeoLED™ allows the optical system of the microscope to produce images at higher resolutions, very close to the theoretical diffraction limit of the optics
• Super long life span, up to 50.000 hrs nominal, L70 norm

PACKAGE CONTENT
4 Metal inserts for stage with 10/15/25 mm hole, 1 metal insert for holding an object clamp, 1 object clamp, 4 filter sliders: blue/green/yellow/frosted white, a rotatable polarizer slider, a 1x C-mount adapter, power cord, dust cover and user manual
