For stereo microscopy choosing the right illumination is essential to obtain a perfect image with maximum resolution. LED light sources have a much longer lifetime, less energy consumption and less heating than halogen light source. The Euromex ELE-5207 is a compact and highly portable LED light source
| MODEL | Power | Color temperature | Luminous flux | Operation voltage | Dimensions (hwd) | Weight (kg) | ||
|
ELE‑5207 |
2x 3 W LED (equivalent to 2x 28 W halogen) |
6,500 K | 25,000 lux max. |
100-240 Vac / 5 Vdc (50/60 Hz) |
106 (w) x 140 (d) 0x 70 mm (h) | 1.5 |  |
TECHNICAL SPECIFICATIONS
• Light source with two self-sustaining gooseneck-type guides, equipped with 2x 3 Watt white 6500 K power LED. Optionally available 365 nm UV-LED or 395 nm or 420 nm Violet-LED self-sustaining gooseneck-type guides
• Each self-sustaining Gooseneck-type LED guide is equipped with a 3-lens focusing head and has a length of 56 cm
• The light source version does not require bulb changing like halogen light sources and has a longer life span and low energy consumption
• The light source produces white light and there is no color temperature shifting when dimming
• Ideal for life and materials sciences, various industrial applications and for stereo microscopy
MODEL
Power
2x 3 W LED (equivalent to 2x 28 W halogen)
Luminous flux
25,000 lux
Color temperature
6,500 K
Operating voltage
100-240 V AC / 5 V DC (50/60 Hz) auto switching
Dimensions
106 mm (w) x 140 mm (d) x 70 mm (h)
Weight
1.5 kg
Product Number
ELE-5207

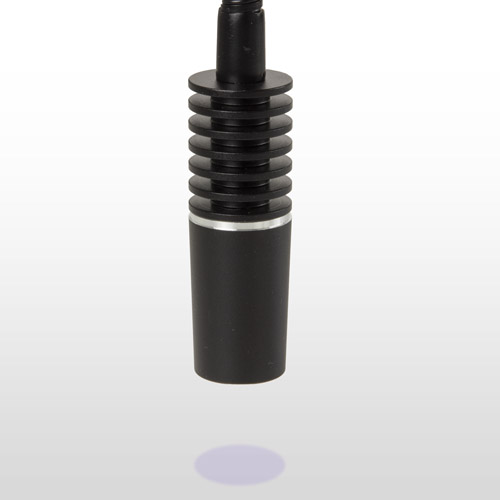

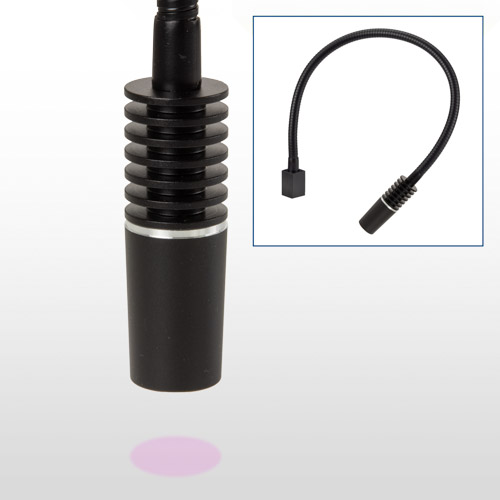

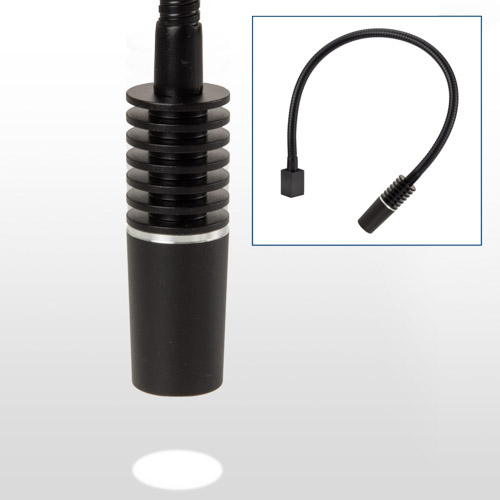

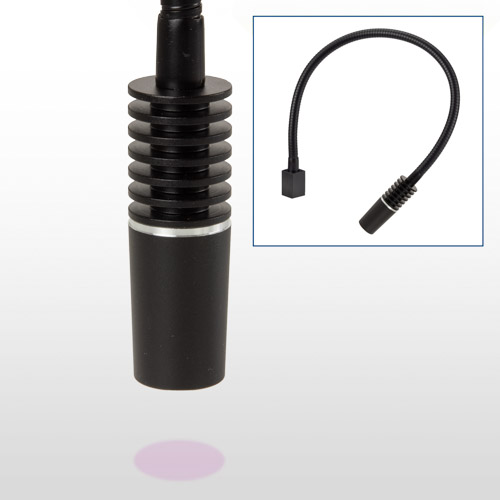

Interchangeable gooseneck-type guides
A = ELE-5260, B = ELE-5261, C = ELE-5262 and D = ELE-5263
Warning:
For your own safety it is highly recommended to wear
protective orange glasses when using the 365 nm gooseneck
ELE-5260
ELE-5261
ELE-5262
ELE-5263

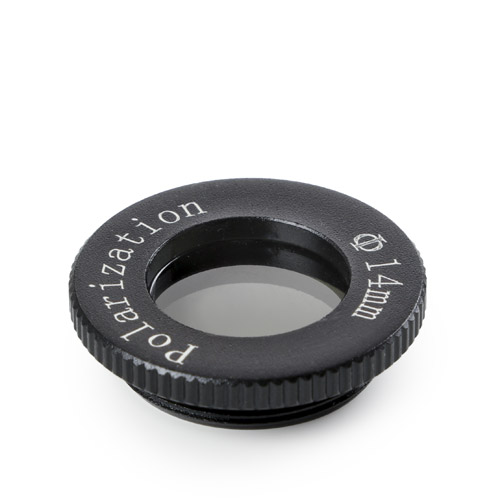

ELE-5264
